if your VS input voltage exceeds 7V, disconnect W1 jumper, then the 78M05.
(2:30 - 3:30) video says the L298N needs a 7-12V input to work properly (due to power drops by the transistors, from other sources). This is a simple dual DC motor driver based on the proven L298N dual h-bridge. I have a battery pack of 6V to power my motors. Driver: L298N Dual H Bridge DC Motor Driver Operating voltage: DC 5V 35V Peak Current: 2 Amps Speed Control: PWM Control Signal input Low voltage range. I want to power DC motors (range 3-6V) using my RaspBerry Pi 4 via a dual L298N motor controller. So, please forgive me any rookie mistakes and correct me if I have any incorrect assumptions.
5V-EN jumper activates or deactivates 7805 line.Disclaimer: I am a very beginner in electronics and experiencing it's first steps into Raspberry Pi and its functionalities. Through this, as you don't plug it to ground, pin voltage level stays as 5V.
V1 is a jumper plugged to the pull-up resistor which sends IN4 input to 5V directly.

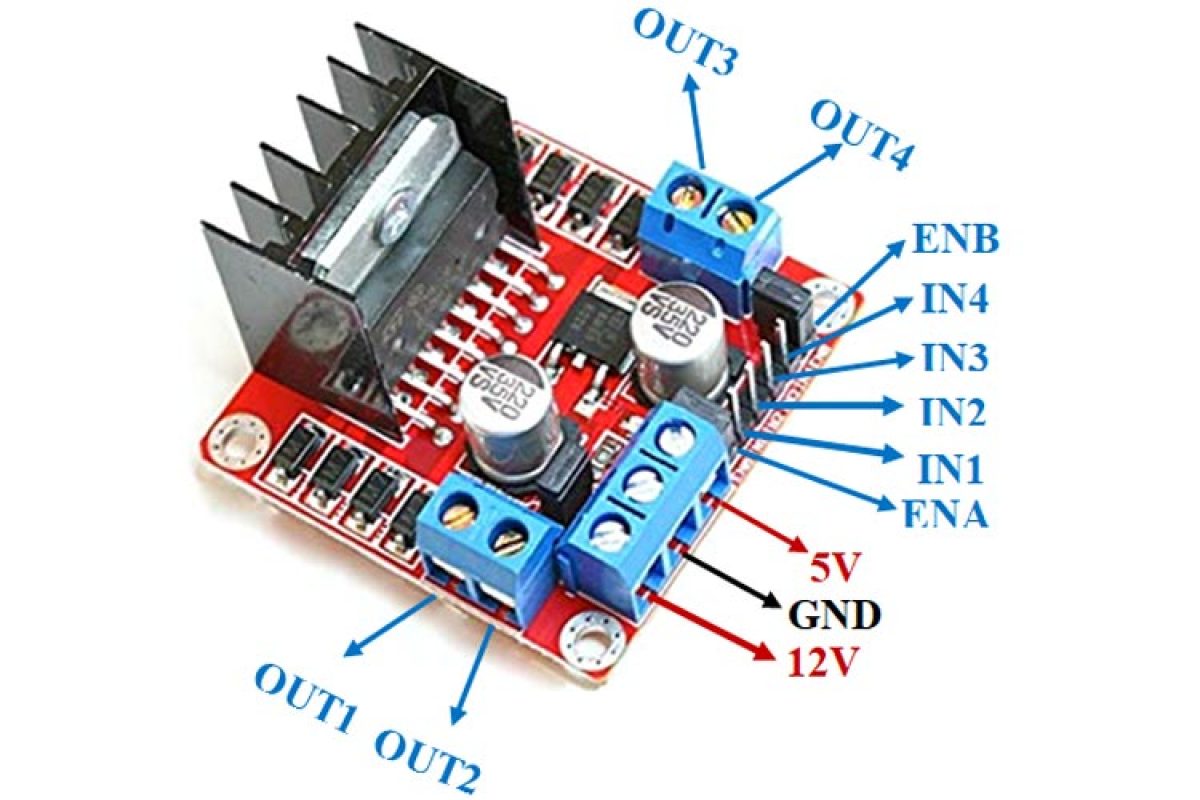

To reverse the direction, reverse the pulses to IN1 and IN2. If you want the left motor to rotate in one direction, apply a high pulse to IN1 and a low pulse to IN2. An H-bridge is a circuit that can drive a current in either polarity and be controlled by pulse. It can also be used to control the brightness of certain lighting projects such as high powered LED arrays. Here is a wiring diagram for connecting two DC motors to the L298N driver board. L298N Dual H Bridge Motor Driver is a motor controller breakout board which is typically used for controlling speed and direction of motors.
V1 is a jumper plugged to the pull-up resistor which sends IN3 input to 5V directly. Connecting a DC Motor to the L298N Board. V1 is a jumper plugged to the pull-up resistor which sends IN2 input to 5V directly. It is a high voltage, high current dual full-bridge driver de-signed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Through this, as you don't plug it to ground, pin voltage level stays as 5V. LOGICAL '0' INPUT VOLTAGE UP TO 1.5 V (HIGH NOISE IMMUNITY) DESCRIPTION The L298 is an integrated monolithic circuit in a 15-lead Multiwatt and PowerSO20 packages. V1 is a jumper plugged to the pull-up resistor which sends IN1 input to 5V directly. With a jumper, current draw value can be read as anlog voltage value. CSB: Current output of B motor driver. This board equipped with power LED indicators, on-board +5V regulator and protection diodes. It can also be interfaced with simple manual switches, TTL logic gates, relays, etc.
CSA: Current output of A motor driver. requiring just a couple of control lines per motor. These pins can be used for optional usages and activate different properties. Jumper plugged pins are available on the board. Encoder, Infinite Pot and Bourns Potentiometer. Plastic Cylinder Thermal Fuse with Capacitor Type. Dual full-bridge means it can support two DC motors at the same time. They are usually in 15- lead Multiwatt and PowerSO20 packages. Sıcaklık, Işık, Zaman Ayarlı Röle Kartları The L298 is a high voltage and current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.
